🔍 Analyzer Scripts

This directory (Scripts/analyzer/) contains analysis tools for structure files, simulation data, and dataset quality control. These scripts help validate, filter, and understand molecular dynamics data and training sets.

Script Location: Scripts/analyzer/

This section covers the analyzer tools in GPUMDkit (Interactive Mode - Option 5).

The analyzer scripts provide functionality for:

  • Energy, force, and virial range analysis
  • Minimum distance calculations (with/without periodic boundary conditions)
  • Structure filtering by various criteria (distance, box size, property values)
  • Composition analysis of multi-component systems
  • Time estimation for GPUMD and NEP calculations
  • Dataset quality checks and outlier detection

Interactive Mode

gpumdkit.sh
# Select: 5) Analyzer

You'll see the following menu:

 ------------>>
 501) Analyze composition of extxyz
 502) Find outliers of extxyz
 000) Return to the main menu
 ------------>>

for 501:

 >-------------------------------------------------<
 | This function calls the script in analyzer      |
 | Script: analyze_composition.py                  |
 | Developer: Zihan YAN (yanzihan@westlake.edu.cn) |
 >-------------------------------------------------<
 Input <input.xyz> you want to analyze
 Examp: train.xyz
 ------------>>

for 502:

 >-------------------------------------------------<
 | This function calls the script in analyzer      |
 | Script: find_outliers.py                        |
 | Developer: Zihan YAN (yanzihan@westlake.edu.cn) |
 >-------------------------------------------------<
 Input the threshold of RMSE to identify outliers
 ---------------------------------------------------
 Enter energy RMSE threshold (meV/atom): 1
 Enter force RMSE threshold (meV/Å): 60
 Enter stress RMSE threshold (GPa): 0.03

Follow the prompts to complete the function.

Command-Line Mode

gpumdkit.sh -range <file.xyz> <property>
gpumdkit.sh -min_dist <file.xyz>
gpumdkit.sh -min_dist_pbc <file.xyz>
gpumdkit.sh -filter_value <file.xyz> <property> <threshold>
gpumdkit.sh -filter_dist <file.xyz> <min_dist>
gpumdkit.sh -filter_box <file.xyz> <box_limit>
gpumdkit.sh -analyze_comp <file.xyz>
gpumdkit.sh -time gpumd
gpumdkit.sh -time nep

Scripts

analyze_composition.py

This script analyze the composition of your extxyz file.

Usage

python analyze_composition.py <extxyz>

Command-Line Mode Example

gpumdkit.sh -analyze_comp train.xyz

Output

 Calling script by Zihan YAN
 Code path: /d/Westlake/GPUMD/Gpumdkit/Scripts/analyzer/analyze_composition.py
 Index    Compositions           N atoms      Count
 ---------------------------------------------------
 1        Li56O96Zr16La24        192          51
 ---------------------------------------------------
 Enter index to export (e.g., '1,2', '2-3', 'all'), or press Enter to skip:

charge_balance_check.py

This script can be used to check the charge balance status of your extxyz file.

Usage

python charge_balance_check.py <extxyz>

Command-Line Mode Example

gpumdkit.sh -cbc train.xyz

Output

 Calling script by Zihan YAN
Computing compositions: 100%|████████████████████████████████████████████████████████████████████| 51/51 [00:03<00:00, 13.03it/s]
Checking oxidation states: 100%|████████████████████████████████████████████████████████████████████| 1/1 [00:03<00:00,  3.67s/it]

Finally, you will get a balanced.xyz and indices.txt file.

energy_force_virial_analyzer.py

This script calculates and visualizes the range of properties (such as energy, forces, and virial) from the extxyz file.

Usage

The script requires at least two arguments:

  • The filename of the extxyz file.
  • The name of the property to analyze (energy, force, or virial).

An optional third argument (hist) can be provided to generate a histogram plot of the values.

python energy_force_virial_analyzer.py <filename> <property> [hist]

Example

python energy_force_virial_analyzer.py train.xyz force

Command-Line Mode Example

gpumdkit.sh -range train.xyz force

Output

Force range: 0.03210566767721861 to 9.230115912468435

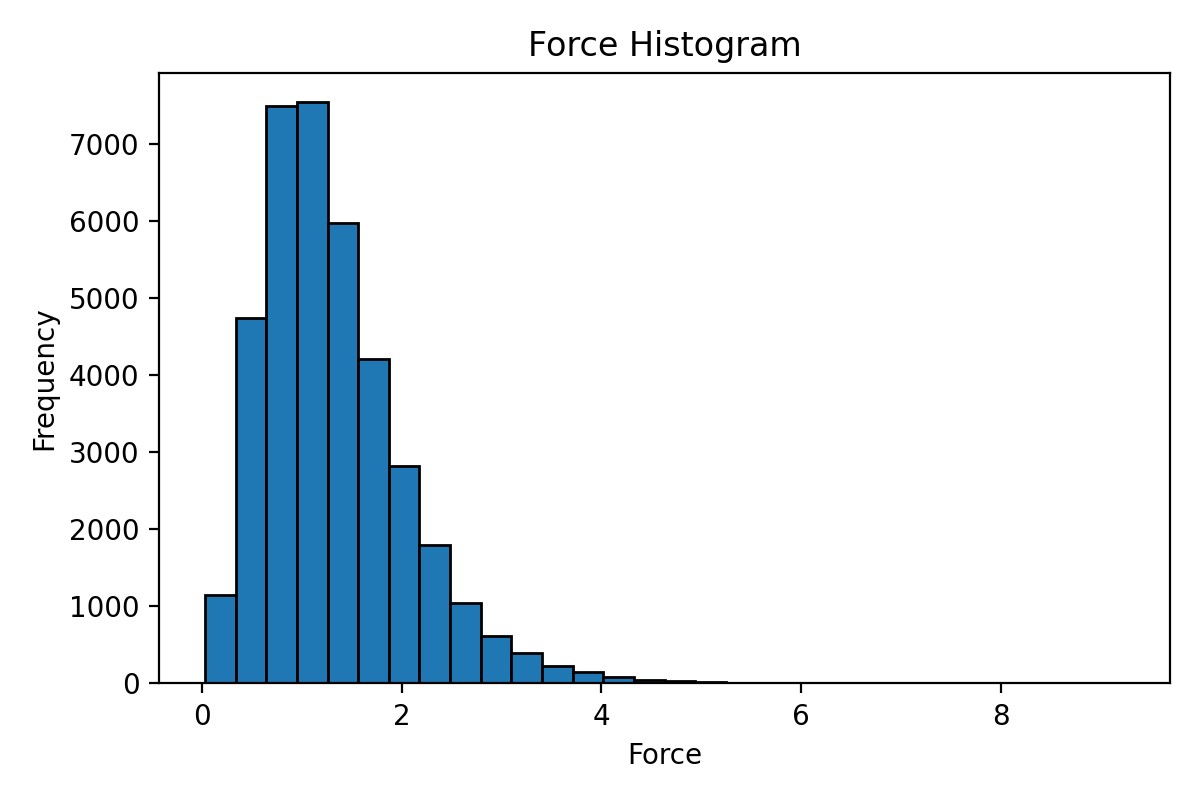

If you add the [hist] option, it will calculate the range of forces and display a histogram:

python energy_force_virial_analyzer.py train.xyz force hist

filter_dist_range.py

This script is used to extract the structures with specified min_dist.

Usage

python filter_dist_range.py <input.xyz> <element1> <element2> <min_dist> <max_dist>

Example

python filter_dist_range.py dump.xyz Li Li 1.8 2.0

Command-Line Mode Example

gpumdkit.sh -filter_range dump.xyz Li Li 1.9 2.0

This means you need to extract the structures with the min_dist of Li-Li in the range of 1.8-2.0 in dump.xyz file. Finally, the filtered_Li_Li_1.8_2.0.xyz file will be generated.

get_min_dist.py

This script is used to calculate the min_dist of the structures.

Usage

python get_min_dist.py <extxyz_file>

Example

python get_min_dist.py dump.xyz

Command-Line Mode Example

gpumdkit.sh -min_dist dump.xyz

Output

 Calling script by Zihan YAN
 Code path: /d/Westlake/GPUMD/Gpumdkit/Scripts/analyzer/get_min_dist.py
 +---------------------------+
 |   PBC ignored for speed   |
 | use -min_dist_pbc for PBC |
 +---------------------------+
 Minimum interatomic distances:
 +---------------------------+
 | Atom Pair |  Distance (Å) |
 +---------------------------+
 |   Li-Li   |     1.696     |
 |   Li-La   |     2.498     |
 |   Li-Zr   |     2.506     |
 |   Li-O    |     1.587     |
 |   La-La   |     3.463     |
 |   La-Zr   |     3.243     |
 |   La-O    |     2.043     |
 |   Zr-Zr   |     5.060     |
 |   Zr-O    |     1.867     |
 |   O-O     |     2.480     |
 +---------------------------+
 Overall min_distance: 1.587 Å

NOTE: This script is fast because it does not take into account periodic boundary conditions (PBC), but in some cases it can be problematic.

get_min_dist_pbc.py

This script is used to calculate the min_dist of the structures considering the PBC.

Usage

python get_min_dist_pbc.py <extxyz_file>

Example

python get_min_dist_pbc.py dump.xyz

Command-Line Mode Example

gpumdkit.sh -min_dist_pbc dump.xyz

Output

 Calling script by Zihan YAN
 Code path: /d/Westlake/GPUMD/Gpumdkit/Scripts/analyzer/get_min_dist_pbc.py
 Minimum interatomic distances (with PBC):
 +---------------------------+
 | Atom Pair |  Distance (Å) |
 +---------------------------+
 |   Li-Li   |     1.696     |
 |   Li-La   |     2.498     |
 |   Li-Zr   |     2.477     |
 |   Li-O    |     1.587     |
 |   La-La   |     3.463     |
 |   La-Zr   |     3.210     |
 |   La-O    |     2.043     |
 |   Zr-Zr   |     5.060     |
 |   Zr-O    |     1.867     |
 |   O-O     |     2.355     |
 +---------------------------+
 Overall min_distance: 1.587 Å

find_outliers.py

This script is used to find outliers in training data based on RMSE thresholds for energy, force, and stress.

Usage

python find_outliers.py

Interactive Mode

 Input the function number:
 5
 ------------>>
 501) Analyze composition of extxyz
 502) Find outliers of extxyz
 000) Return to the main menu
 ------------>>
 Input the function number:
 502
 >-------------------------------------------------<
 | This function calls the script in analyzer      |
 | Script: find_outliers.py                        |
 | Developer: Zihan YAN (yanzihan@westlake.edu.cn) |
 >-------------------------------------------------<
 Input the threshold of RMSE to identify outliers
 ---------------------------------------------------
 Enter energy RMSE threshold (meV/atom): 1
 Enter force RMSE threshold (meV/Å): 60
 Enter stress RMSE threshold (GPa): 0.03

After that, you will get selected.xyz, remained.xyz, and slected_remained.png

filter_exyz_by_value.py

This script filter the structures by min_dist.

Usage

python filter_exyz_by_value.py <extxyz_file> <min_dist>

Example

python filter_exyz_by_value.py dump.xyz 1.4

Command-Line Mode Example

gpumdkit.sh -filter_value dump.xyz 1.4

filter_exyz_by_box.py

This script filter the structures by box limit.

Usage

python filter_exyz_by_box.py <extxyz_file> <min_dist>

Example

python filter_exyz_by_box.py dump.xyz 20

Command-Line Mode Example

gpumdkit.sh -filter_box dump.xyz 20

filter_exyz_by_value.py

This script filter the structures by specified value.

Usage

python filter_exyz_by_value.py <extxyz_file> <property> <threshold>
  • <extxyz_file>: The path to the input extxyz file.
  • <property>: Filtering property: energy, force, or virial
  • <threshold>: Threshold value for filtering

Example

python filter_exyz_by_value.py train.xyz force 20

Command-Line Mode Example

gpumdkit.sh -filter_value train.xyz force 20

This command will filter out the structure in train.xyz with a force greater than 20 eV/angstrom.

time_consuming_gpumd.sh

This script calculates the remaining time for GPUMD.

Usage

bash time_consuming_gpumd.sh

Command-Line Mode Example

gpumdkit.sh -time gpumd

Output

 ----------------- System Information ----------------
 total frames: 1050000
 -----------------------------------------------------
 Current Frame  Speed (steps/s)   Total Time       Time Left       Estimated End
 -------------   -------------   -------------   -------------   -----------------
     13000          499.86         0h 35m 0s      0h 34m 34s    2025-12-27 18:12:04
     14000          199.93        1h 27m 31s      1h 26m 21s    2025-12-27 19:03:56
     15000          199.94        1h 27m 31s      1h 26m 16s    2025-12-27 19:03:56

time_consuming_nep.sh

This script calculates the remaining time for nep.

Usage

bash time_consuming_nep.sh

Command-Line Mode Example

gpumdkit.sh -time nep

Output

+-----------------+-----------+-----------------+---------------------+
|       Step      | Time Diff |    Time Left    |    Finish Time      |
+-----------------+-----------+-----------------+---------------------+
| 6700            | 1 s       | 0 h 15 m 33 s   | 2025-10-23 15:34:11 |
| 6800            | 2 s       | 0 h 31 m 4 s    | 2025-10-23 15:49:44 |
| 6900            | 2 s       | 0 h 31 m 2 s    | 2025-10-23 15:49:44 |
| 7000            | 2 s       | 0 h 31 m 0 s    | 2025-10-23 15:49:44 |
| 7100            | 3 s       | 0 h 46 m 27 s   | 2025-10-23 16:05:14 |

Contributing

To add new analyzer scripts, see CONTRIBUTING.md for detailed guidelines.

Thank you for using GPUMDkit! If you have questions or need assistance with analyzer scripts, please open an issue on our GitHub repository or contact Zihan YAN (yanzihan@westlake.edu.cn).
